DIGISCAN DS-702 LITE Ultrasonic Flaw detector

DIGISCAN DS-702 LITE Ultrasonic Flaw Detector

The DIGISCAN DS-702 LITE Ultrasonic Flaw Detector is a compact, high-performance ultrasonic testing machine designed for fast and accurate flaw detection, weld inspection, and material evaluation. Built for non destructive testing ultrasonic testing, it delivers reliable inspection results for critical industrial applications using advanced ultrasonic technology.

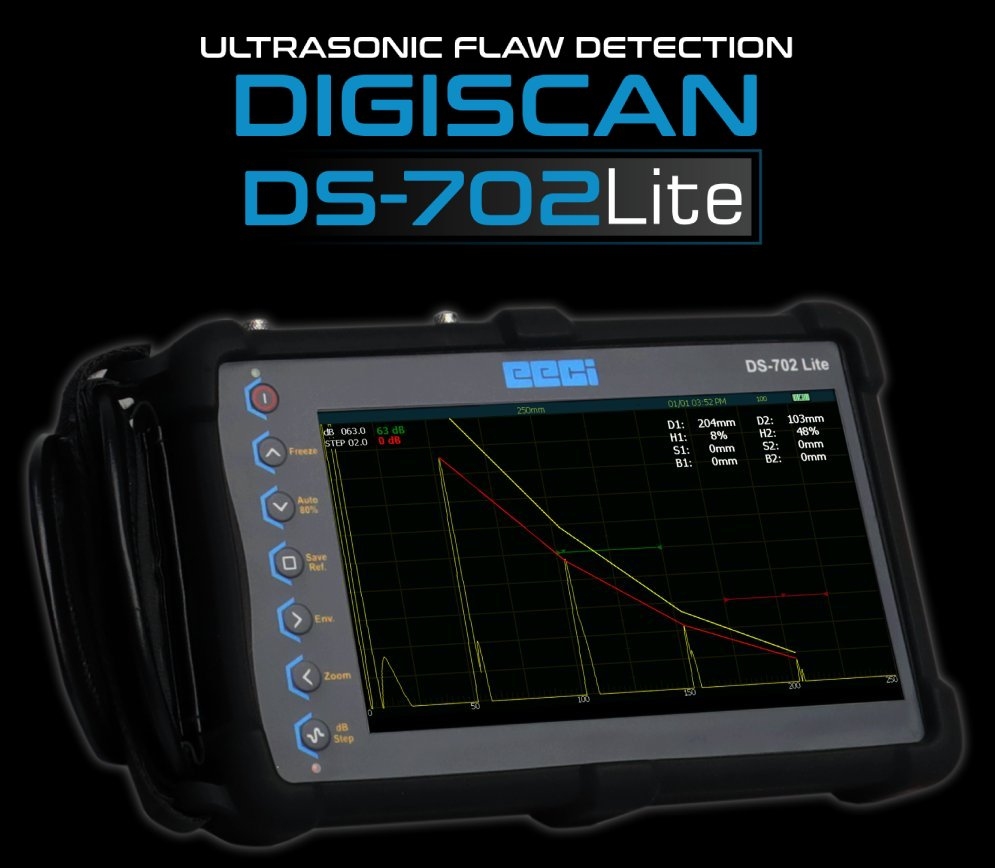

DS-702-LITE-Ultrasonic-Flaw-Detector
Download Brochure
Comparision DS-702 vs DS-702 LITE Brochure

Key Features

Ultrasonic-Flaw-Detector-DS-702-Lite-Features
DS-702-LITE-Ultrasonic-Flaw-Detector
Download Brochure

Product Overview

The DIGISCAN DS702 LITE Ultrasonic Flaw Detector is designed to provide accurate and reliable flaw detection for a wide range of Non-Destructive testing (NDT) applications. Compact, rugged and user-friendly, it helps operations to identify internal discontinuities such as crack, porosity, inclusions, laminations and weld defects in metallic and composite material without damaging.

DS 702 LITE is IP66 rugged constructed. The functional features involve Flexi DGS, DAC, on board reporting TOF resolution, high defined display with 100 dB gain.

It is designed for evaluating welds, castings, forgings, pressure vessels, pipelines and structural components. It enables accurate flaw detection while supporting quality assurance and compliance with international and NDT standards.

Key Features

  • High-performance ultrasonic flaw detector
  • Compact and lightweight
  • Fast and accurate ultrasonic testing
  • Ideal for ultrasonic testing for NDT
  • Two configurable flaw detection gates measurement
  • Spike pulser technology
  • Wide inspection range
  • Compatible with various ultrasonic transducer probes
  • Audio and visual alarms
  • Ports : USB C – Charging, storage access
    USB A – Flash drive
    HDMI Type – Mini HDMI to video output
  • Battery Life : Up to 8 hrs

Applications and Industries Served

Applications-

  • Ultrasonic testing for welding
  • Forging inspection
  • Casting inspection
  • Aerospace component inspection
  • Power plant maintenance

Industries served-

  • Aerospace
  • Automotive
  • Oil & Gas
  • Nuclear
  • Defence

Technical Specifications

Specification Details
Model DIGISCAN DS-702 LITE Ultrasonic Flaw Detector
Product Type Ultrasonic Flaw Detector
Testing Method Pulse Echo Ultrasonic Testing
Display Brightness 1000 nits, variable from 10% to 100%
Gates Dual Gates
Pulser Types Spike Pulser
Test Modes Pulse Echo, Dual
Probe Connection LEMO 00
Storage 32 GB SD Card
Connectivity USB-C, USB-A, HDMI
Protection IP66
Operation Portable Handheld

Why Choose DIGISCAN DS-702 LITE?

The DIGISCAN DS-702 LITE combines portability, precision, and advanced inspection capabilities in a single ultrasonic testing machine. Designed for demanding industrial environments, it enables inspectors to detect internal flaws quickly and accurately while reducing inspection time and improving productivity.

Using advanced ultrasonic testing UT methods, the instrument delivers reliable results across a wide range of applications. Its compatibility with multiple ultrasonic transducer probes makes it suitable for different inspection requirements, including weld testing, corrosion detection, and thickness evaluation.

Compared to conventional inspection methods, non destructive testing ultrasonic testing allows components to be evaluated without cutting, damaging, or interrupting production, making it an efficient solution for quality assurance.

Benefits

  • Accurate internal flaw detection
  • Fast ultrasonic testing inspection
  • Portable handheld operation
  • Non-destructive material evaluation
  • Reduced inspection time
  • High repeatability and reliability
  • Suitable for field and laboratory use
  • Easy operation and calibration
  • Supports multiple probe configurations
  • Rugged industrial performance

Need a Reliable Ultrasonic Flaw Detector?

Improve inspection accuracy with the DIGISCAN DS-702 LITE Ultrasonic Flaw Detector. Designed for ultrasonic testing for NDT, weld inspection, and material evaluation, it delivers fast, accurate, and reliable results across a wide range of industrial applications.

Ensure confidence in every inspection with a high-performance ultrasonic testing machine built for field and laboratory use.

Contact Our Experts

Frequently Asked Questions

What is ultrasonic testing?

Ultrasonic testing (UT) is a non-destructive testing method that uses high-frequency sound waves to inspect materials and detect internal flaws without causing damage.

What is an ultrasonic flaw detector?

An ultrasonic flaw detector is an instrument used in non-destructive testing (NDT) to detect internal defects, cracks, voids, and discontinuities using high-frequency ultrasonic waves.

Can the DS-702 LITE be used for ultrasonic testing for welding?

Yes. It is specifically designed for ultrasonic testing for welding, allowing accurate inspection of weld quality, discontinuities, and structural integrity.

What types of probes are supported?

The instrument is compatible with a wide range of ultrasonic transducer probes, including straight beam and angle beam probes for different inspection applications.

Is the DIGISCAN DS-702 LITE suitable for field inspections?

Yes. Its rugged IP66-rated construction, portable design, and battery-powered operation make it ideal for both field and laboratory inspections.
